AS/400 native program description

 EASYCOM enables AS/400 native programs calling, CL or RPG programs or stored procedures.

To perform this, EASYCOM needs these programs description stored on AS/400 in YPROCHDR and YPROCPARMS files in EASYCOM library.



Programs description and data queues are built by DTAQ-RPC constructor. The basic principle is to specify all parameters, types and uses (input, output, input/output) required to call the program.

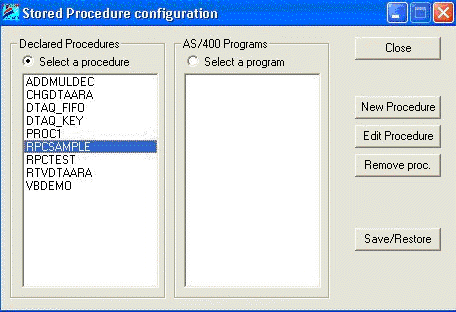

The first screen displays the existing procedures (stored on AS/400) and enables to create, modify, or delete them. The descriptions can be saved in a PC text file in view of a later transfer to another AS/400.

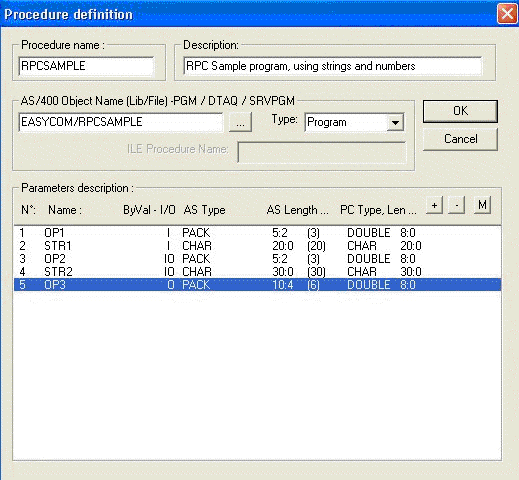

A new name is assigned to the procedure. It does not need to match with the associated program name.

A native AS/400 program (CL, RPG, COBOL, C etc.) is associated to the procedure.

The library may be omitted or replaced by *LIBL.

The description is a free text, which will be seen when client workstations browse through the procedures.

Each program calling type and size parameters are described.

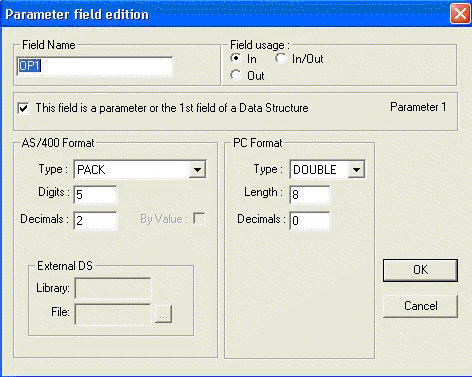

Each parameter may be considered as a database table field.






Each parameter can be considered as a field in a database table.



It therefore has a name, by which it can be referred to by the application.



Parameters designed to provide values for the called program are considered as input parameters (IN).



Parameters designed to receive a value on returning from the call are considered as output parameters (OUT).



Parameters that are modified by the program are both input and output (IN/OUT) parameters.

By default, all the parameters in an AS/400 program are both input and output. The logic of the program can change this property.

If a calling parameter of the program is a structure (DS : Data Structure), each field of the DS has to be described individually.



For the first field only, the box to be ticked is: This field is a parameter or the 1st Field.



The type of parameter expected by the AS/400 program must be specified exactly:



CHAR :

Character data type.

BIN2 :

16-bit numeric data type.

BIN4 :

32-bit numeric data type.

PACK :

Condensed numeric data type (DECIMAL).

This is the format in which CL handles numerical data (CL *DEC type).

ZONED :

Extended numeric data type (NUMERIC).

DATE :

AS/400 date in the yyyy-mm-dd format.

TIME :

Time in hh:mm:ss format.

FLOAT :

Numeric value in single-precision floating point.

DOUBLE :

Numeric value in double-precision floating point.

TIMESTP :

Elapsed time field.

GRAPHIC :

Character type data, not to be converted.

EXTERNAL DS :

A structure described by an external data structure, i.e., a physical file.
